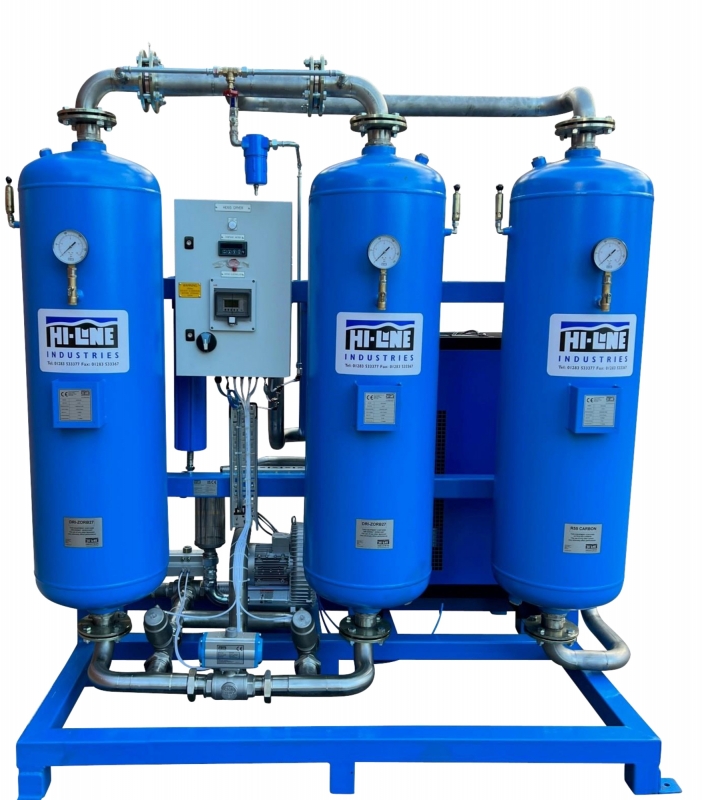

HI-PLEX Dual Technology Dryer Skids

HI-PLEX have been around at Hi-line for several years, it is dual technology air drying, FRIDGE & DESICCANT on the same skid

There is a point in air drying with desiccant dryers where Zero Loss capital costs offsets against energy, at sub 600cfm or 17m3/min.

Essentially HI-PLEX savings are TWO-FOLD

1. Fridge system to remove bulk oil and water

2. Desiccant dryer with vacuum assisted regeneration to reduce compressed air regeneration. Typically running at 1–2% purge as opposed to 13% on a standard heatless desiccant air dryer

Model

w (mm)

h (mm)

d (mm)

Weight (kg)

HI PLEX 165

1500

20890

950

960

HI-PLEX 225

1500

2300

950

1200

HI-PLEX 280

1650

2200

950

1300

HI-PLEX 350

1650

950

2400

1500

HI-PLEX 450

1800

1100

2400

1700

HI-PLEX 565

1600

1100

2900

1900

HI-PLEX 850

2700

950

2500

2100

HI-PLEX 1000

2350

1300

2960

2500

HI-PLEX 1130

2350

1200

3040

2700

HI-PLEX 1400

2700

1700

2640

2900

HI-PLEX 1700

2520

1700

3200

3100
