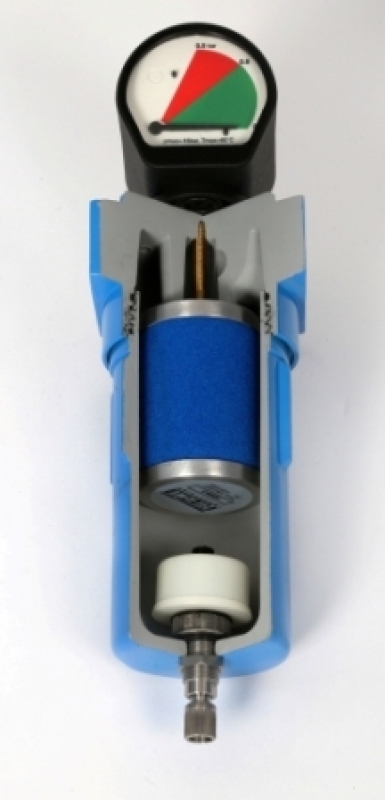

Filter Housings (HF Series) | Hi-Line Industries

Hi-line fliter housings are available in the following grades.

Grade 2 - 3 micron particle removal

Grade 3 - 1 micron particle removal, 0.1 micron oil removal

Grade 4 - 0.01 micron particle removal, 0.01 micron oil removal

Grade 5 - 0.003 micron oil removal

Model	l/min	m3/hr	cfm	w (mm)	h (mm)	d (mm)	Weight (kg)	Connections
HF20	566	34	20	60	135	60	1	1/4" bsp
HF22	622	37	22	90	185	90	1	1/4" bsp
HF25	707	42	25	87	151	87	1	1/2" bsp
HF36	1019	61	36	87	192	87	1	1/2" bsp
HF50	1415	85	50	87	192	87	1	1/2" bsp
HF72	2038	122	72	87	263	87	1	1/2" bsp
HF75	2038	122	72	87	263	87	1	3/4" bsp
HF120	3398	203	120	130	285	130	4	1" bsp
HF210	5946	356	210	130	380	130	4	11/2" bsp
HF320	9061	543	320	130	482	130	5	11/2" bsp
HF500	14158	849	500	130	692	130	7	11/2" bsp
HF630	17839	1070	630	162	686	162	9	2" bsp
HF850	24069	1444	850	162	937	162	11	21/2" bsp
HF1400	39643	2378	1400	252	910	252	26	3" bsp
HF1700	48138	2888	1700	252	1060	252	28	3" bsp
