The Atacama PLUS point of use desiccant dryer is designed with reliability at the forefront, has no shuttle valves and uses only positively driven valves, eliminating any chance of valve failure and extending service periods. The standard unit dries air to a dewpoint of -40°c and comes with built on pre and after filtration. Lower dewpoint models are available on request.

The proven extruded aluminium technology is ideal for an array of applications, including dental, medical, powder coating, printing and laser technology, pneumatic control, plasma cutting and general manufacturing.

The Atacama PLUS range is available from 5cfm to 100cfm and is also available with dewpoint control as an extra feature.

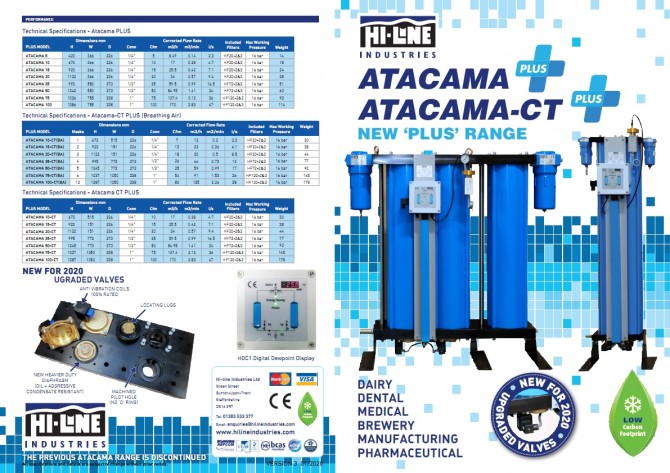

Click here to download product brochure

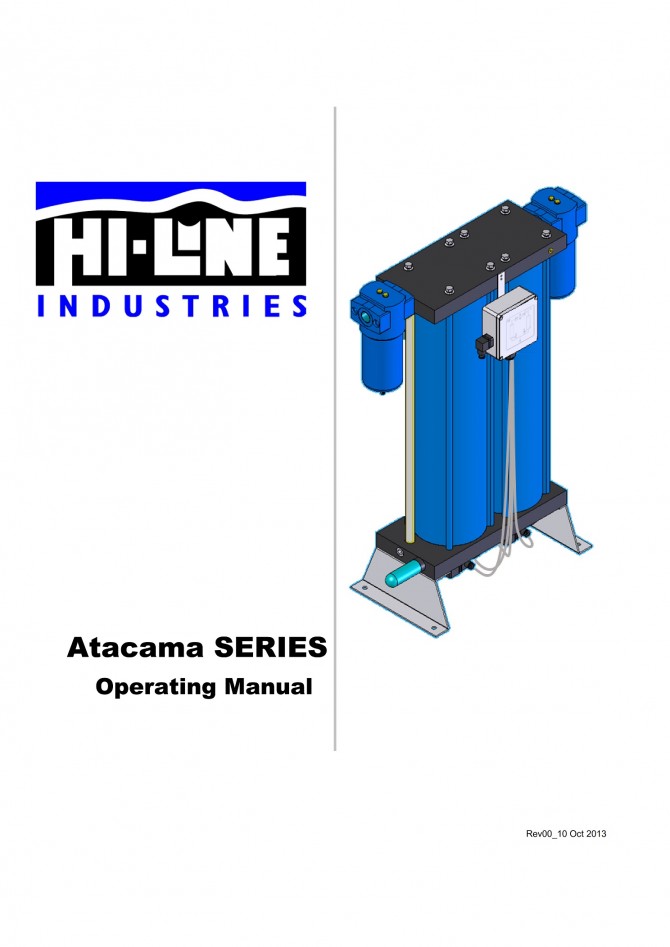

Click here to download product manual









Click a row in the table for more product detail:

Model	l/min	m3/hr	cfm	w (mm)	h (mm)	d (mm)	Weight (kg)	Connections
Atacama 5 PLUS	138	8	5	366	420	226	14	1/4" bsp
Atacama 10 PLUS	264	16	10	366	670	226	18	1/4" bsp
Atacama 15 PLUS	423	25	15	515	922	226	24	1/4" bsp
Atacama 20 PLUS	585	35	20	366	1120	226	28	1/4" bsp
Atacama 35 PLUS	938	56	35	550	992	273	51	1/2" bsp
Atacama 50 PLUS	1200	72	50	550	1242	273	51	1/2" bsp
Atacama 75 PLUS	1800	108	75	755	1036	338	93	1" bsp
Atacama 100 PLUS	2700	162	100	755	1386	338	114	1" bsp
