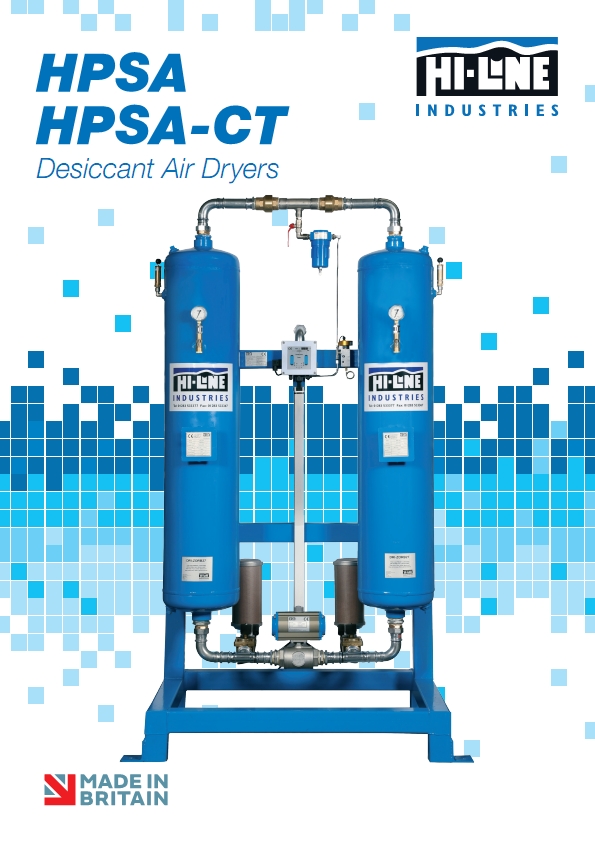

HPSA - Heatless Pressure Swing Adsorption Dryer
This proven technology is designed and built in our Burton-upon-Trent factory by a highly skilled team of engineers working to EU engineering standards. Although we have a standard range of product available off the shelf for next day delivery, we can build bespoke dryers to suit specification applications and private label them for OEM customers.
HPSA dryers are sold as "Plug and Play" and come skid mounted with their own filtration package with pre and after filters as standard.
These dryers use positively driven valves and full flow non-return valaves and have no shuttle valves as fitted within inferior quality dryers.
Designed for a long trouble free service life, each HPSA uses Dri-Zorb 27 desiccant media which delivers constant low dewpoints whilst using the lowest possible amount of regeneration air.
The digital control panel which has LED display as standard, can be upgraded to include digital dewpoint display and dewpoint control. It can communicate with most BMS systems and compressors for automatic stop/start or timed duty.
All Hi-line products are supported by a nationwide network of Hi-line service engineers, for the service and maintenance of air dryers of all brands both adsorption and refigeration.
Click a row in the table for more product detail:
Model | m3/hr | cfm | Power Supply | w (mm) | h (mm) | d (mm) | Weight (kg) | Connections |
---|---|---|---|---|---|---|---|---|
HPSA80 | 136 | 80 | 230-1-50 | 1000 | 2300 | 900 | 200 | 1/2" BSP |
HPSA100 | 170 | 100 | 230-1-50 | 1000 | 2300 | 900 | 240 | 1" BSP |
HPSA135 | 230 | 135 | 230-1-50 | 1000 | 2300 | 900 | 260 | 1 1/2" BSP |
HPSA165 | 295 | 165 | 230-1-50 | 1250 | 2300 | 900 | 310 | 1 1/2" BSP |
HPSA225 | 383 | 225 | 230-1-50 | 1250 | 2300 | 900 | 510 | 1 1/2" BSP |
HPSA280 | 476 | 280 | 230-1-50 | 1250 | 2450 | 900 | 550 | 1 1/2" BSP |
HPSA350 | 595 | 350 | 230-1-50 | 1250 | 2300 | 900 | 580 | 2" BSP |
HPSA450 | 765 | 450 | 230-1-50 | 1250 | 2450 | 900 | 610 | 2" BSP |
HPSA565 | 960 | 565 | 230-1-50 | 1250 | 2350 | 900 | 630 | 2 1/2" BSP |
HPSA735 | 1250 | 735 | 230-1-50 | 2350 | 2360 | 850 | 900 | 3" PN16 |
HPSA850 | 1450 | 850 | 230-1-50 | 2350 | 2610 | 850 | 950 | 3" PN16 |
HPSA1000 | 1700 | 100 | 230-1-50 | 2350 | 2800 | 850 | 1010 | 3" PN16 |
HPSA1130 | 1920 | 1130 | 230-1-50 | 2350 | 2870 | 850 | 1200 | 4" PN16 |
HPSA1400 | 2380 | 1400 | 230-1-50 | 2350 | 3010 | 850 | 1400 | 4" PN16 |
